THE SMALLEST GENSET IN OUR RANGE (The GFZ range is from 10kW to 60kW)

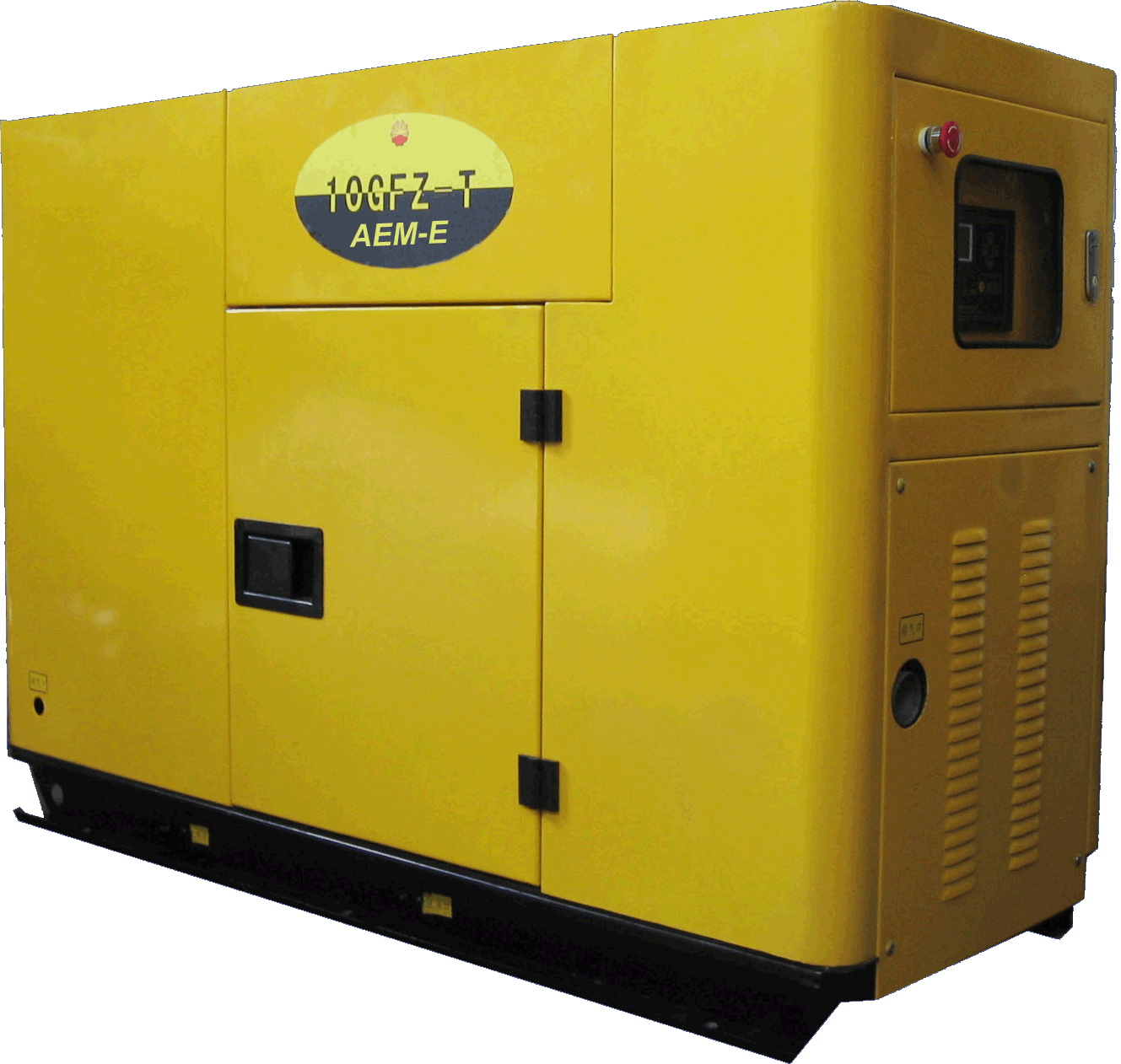

10gfz

Main technical requirement of genset


CH4 Requirement

No less than 65%

Heat value Requirement

No less than 31.2MJ/M3

Total S content

≤460mg/M3

H2S content

≤200mg/M3

Gas pressure

80~120kpa



Main technical specification of gas gensets


Generator sets Model

10GFZ-T

Model of engine

465T

Sound level

≤72dB(1 meter from the housing)

Rated power      KW

10

Rated speed      r/min.

1500

Rated voltage     V

400/230

Rated frequency   Hz

50

Rated power factor

0.8

Supply method

3 phases 4 lines

Excitation method

brushless

Starting method

12V DC starter 12V

Net weight     Kg

360 (total weight with housing)

Overall dimension L×B×H(mm)

1650×650×1250



Main technical data of engin

Model of engine

465T

Rated power/speed

15kW/1500rpm

Net weight

99kg

Specific heat consumption

≤11500KJ/KW.h

Specific oil consumption

≤1.5g/KW.h

Speed modulate method

Electronic control

Model of controller

2005-RC

Number and layout of cylinders

4 cylinders, in line

Type

Four stroke, water cooled, spark plug ignition

Bore

65mm

Stroke

72mm

Cooling method

Closed type(with radiator)

Compression ratio

8.8:1

Direction of rotation (facing to end)

Counter-Clockwise

Lubricating method

Pressure and splash lubrication
