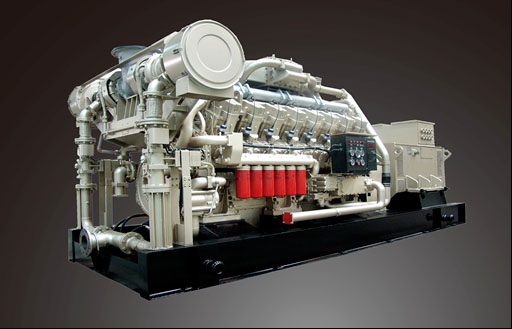

Generating set model | 1100GF-TK | |
Rated power | 1100 kW | |
Continuous power | 1000 kW | |
Rated Capacity | 1375 kVA | |
Engine model | H12V190ZLT-2 | |
Generator model | 1FC6564-6LA42-Z | |
Rated rpm (r/min) | 1000 | |
Rated voltage (V) | 230/400 V | |
Rated current (A) | 2165 A | |
Rated frequency (Hz) | 50 | |
Steady-state voltage adjusting rate | ±3% | |
Voltage fluctuation rate | 1% | |
Transient-state voltage adjusting rate | -15 ~ +20% | |
Recovery time (Sec) | 2 | |
Steady-state frequency adjusting rate | 0~5% adjustable | |
Frequency fluctuation rate | 1.5% | |
Transient-state frequency adjusting rate | ±10% | |
Frequency recovery time(s) | 5 | |
Starting mode | Pneumatic/electric | |
Overall dimensions (mm) | 6625X2516X2545 |
