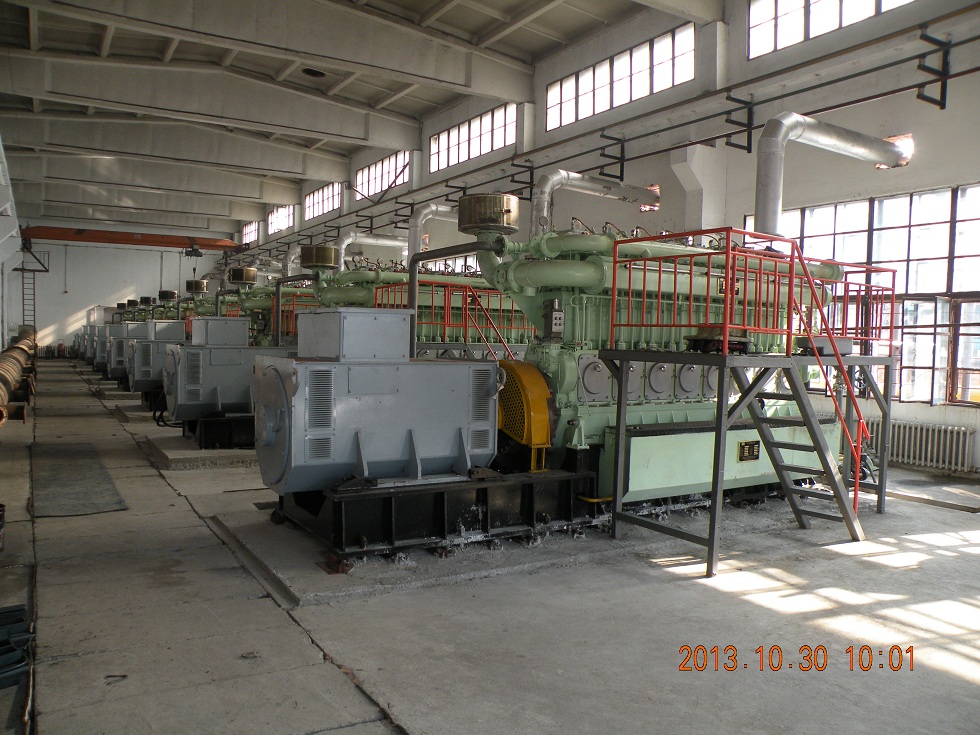

Installation with 8x 500kW Hi-H2 Generator sets for low Heat value gas (H2: 55% to 65%)
Installation with 8x 500kW Hi-H2 Generator sets for low Heat value gas (H2: 55% to 65%)
| Generating set model | 500GFH | |
| Rated power | 550 kW | |
| Continuous power | 500 kW | |
| Rated Capacity | 688 kVA | |
| Engine model | 8300 | |
| Generator model | R8300-H5 | |
| Rated rpm (r/min) | 500 rpm | |
| Rated voltage (V) | 230/400 V | |
| Rated current (A) | 900 A | |
| Rated frequency (Hz) | 50 Hz | |
| Steady-state voltage adjusting rate | ±3% | |
| Voltage fluctuation rate | 1% | |
| Transient-state voltage adjusting rate | -15 ~ +20% | |
| Recovery time (Sec) | 2 | |
| Steady-state frequency adjusting rate | 0~5% adjustable | |
| Fuel system | Port Injection | |
| Fuel: Hi-H2 producer gas (%H2) | <= 65% H2 | |
| Combustion Air System | Natural Aspiration | |
| Starting mode | Pneumatic/electric | |
| Total Weight (T) | 24 Tons | |
