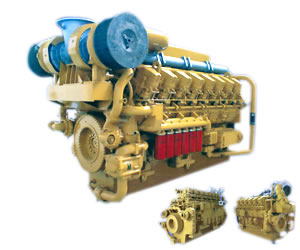

6000 Marine Engine (700~2200Kw)
Features of 6000 Marine Engine:
1.Design and advanced technology from AVL of Austria
2. High efficiency and reliability
3. Rated power: 700~2200KW;
4. Net weight: 8200~13000Kg.
5. Fuel consumption: ≤200 g/kW.h
Applications:
This propulsion engine is widely used to supply power for various diesel power generation plants and ocean drilling platforms etc.
Technical Specification of 6000 Marine Diesel Engine:
| Model | Rated power (kW) |
Rated rpm (r/min) | Fuel consumption(g/kW.h) | Oil consumption(g/kW.h) | Overall dimensions (mm) | Net weight (kg) |
| H12V190ZLC | 1580 | 1450 | ≤200 | ≤1.0 | 3212×1597×2211 | 9500 |
| H12V190ZLC2 | 1740 | 1500 | ≤200 | ≤1.0 | 3212×1597×2211 | 9500 |
| H12V190ZLC-1 | 1200 | 1200 | ≤200 | ≤1.0 | 3212×1597×2211 | 9500 |
| H16V190ZLC | 2200 | 1500 | ≤200 | ≤1.0 | 3525×2060×2331 | 13000 |
| H16V190ZLC-1 | 1650 | 1200 | ≤200 | ≤1.0 | 3525×2060×2331 | 13000 |
| H8V190ZLC | 1000 | 1450 | ≤200 | ≤1.0 | 3349×1416×2225 | 8200 |
| H8V190ZLC-1 | 830 | 1200 | ≤200 | ≤1.0 | 3349×1416×2225 | 8200 |
| H8V190ZLC-2 | 700 | 1000 | ≤200 | ≤1.0 | 3349×1416×2225 | 8200 |
| H8V190ZLC-3 | 900 | 1300 | ≤200 | ≤1.0 | 3349×1416×2225 | 8200 |
